Graphics Symbols By Name




QUESTION: I love your cgSymCat program and the forty some graphics symbols I can use on my graphics plots. But, I can never remember which index number refers to which symbol. Can't I just ask for a plotting symbol by giving a symbol name?
ANSWER: Yes, now you can. A recent update to the Coyote Graphics routine cgSymCat allows you to ask for a plotting symbol by name. To obtain a list of symbol names, type this.
IDL> Print, Transpose(cgSymCat(/Names))
All the Coyote Graphics routines have been updated so you can use symbol names with the normal PSym keyword. (See the figure below.)
IDL> cgPlot, cgDemoData(1), PSym='star', SymSize=2.0
![]() |

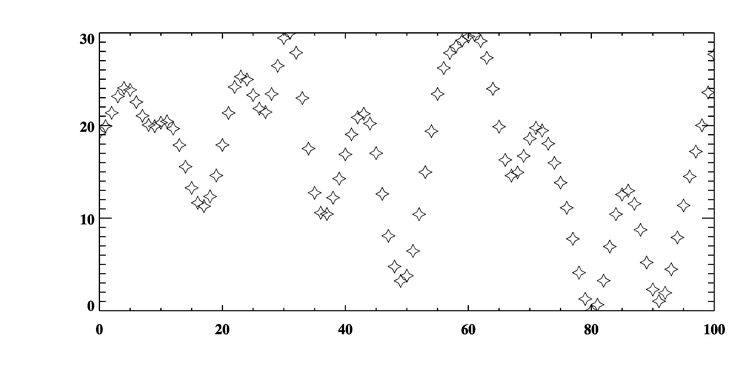

Symbol names can be used with PSYM keywords. |
It is even possible to connect symbols by using a minus sign in the symbol name.
IDL> cgPlot, cgDemoData(1), PSym='-star', SymSize=2.0
![]() |

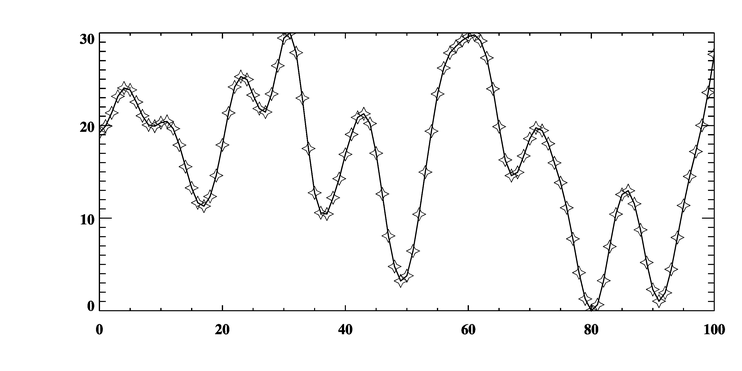

To connect symbols, use a minus sign in the symbol name. |
Version of IDL used to prepare this article: IDL 7.1.2.
Copyright ©
1996–2018 Fanning Software Consulting, Inc.
Written: 30 July 2012
